Selective Pallet Racking System

Rack & Save PTE LTD is a racking supplier in Singapore of Mezzanine Racking System.

This system provides efficient use of space and gives immediate access to every load or pallet stored because it provides the best ratio of storage capacity to product selectivity.

Selective Pallet Racking System is an effective solution for almost every storage needs, from basic pallet storage to the most complex order picking operations.

By adding decking and other accessories, pallet racking systems become even more versatile, allowing the storage of everything from the smallest carton to drums and wire reels.

Available in a variety of depths, heights, lengths and loading capacities, Selective Pallet Racking is the definition of flexibility in warehouse and distribution center storage.

Dimensions of Selective Pallet Racking System

Materials – High Tensile Steel

Beam – (Orange)

1)Open Beam 75 x 45 x 1.5Thk

2)Box Beam 80 x 45 x 1.5Thk

3)Box Beam 90 x 45 x 1.5Thk

4)Box Beam 100 x 45 x 1.5Thk

5)Box Beam 120 x 45 x 1.5Thk

6)Box Beam 135 x 45 x 1.5Thk

7)Box Beam 140 x 45 x 1.5Thk

Standard Beam Length:

1) 1250mm Long

2) 1350mm Long

3) 1500mm Long

4) 1850mm Long

5) 2100mm Long

6) 2300mm Long

7) 2400mm Long

8) 2460mm Long

9) 2700mm Long

10) 3000mm Long

11) 3300mm Long

12) 3600mm Long

13) 3900mm Long

Materials – High Tensile Steel Pitch 75mm

Endframe with Lips – (Blue)

1)90 x 69 x 1.8Thk

2)90 x 69 x 2.0Thk

3)90 x 69 x 2.6Thk

4)120 x 69 x 2.0Thk

5)120 x 69 x 2.6Thk

Endframe Standard – (Blue)

1) 90 x 64 x 1.8Thk

2) 90 x 64 x 2.0Thk

3) 90 x 64 x 2.6Thk

Endframe Dimension

1) 600 Depth

2) 750 Depth

3) 900 Depth

4) 1050 Depth

5) 1200 Depth

Height up to 9900m

FEATURES of Selective Pallet Racking System

Adjustable shelf at 60mm pitch, 1 to 3Tons/level UDL, Bolted frames fitted with locking nuts, 3 to 4 hooks each connectors, Powder quoted finish

Advantages of Selective Pallet Racking System

Accessible to all products at all aisles
Flexibility in adding or reconfiguring storage
Lower Forklift Pallet Handling Costs
Cost effective racking (per square metre)
FIFO ensures SKUs can be turned over effectively
Able to access large range of Stock Keeping Units (SKUs)
Able to store a wide variety of products (different SKUs)

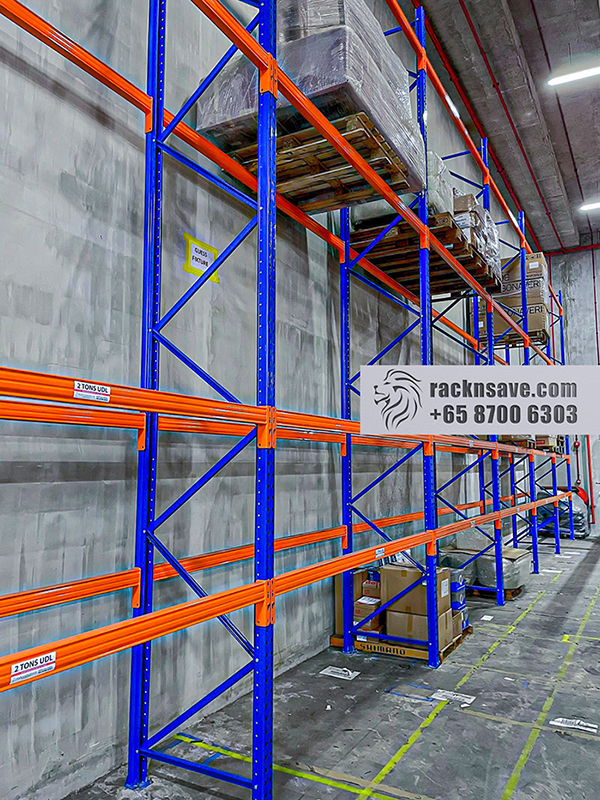

pallet rack systems warehouse industrial double deep Singapore racknsave image 1

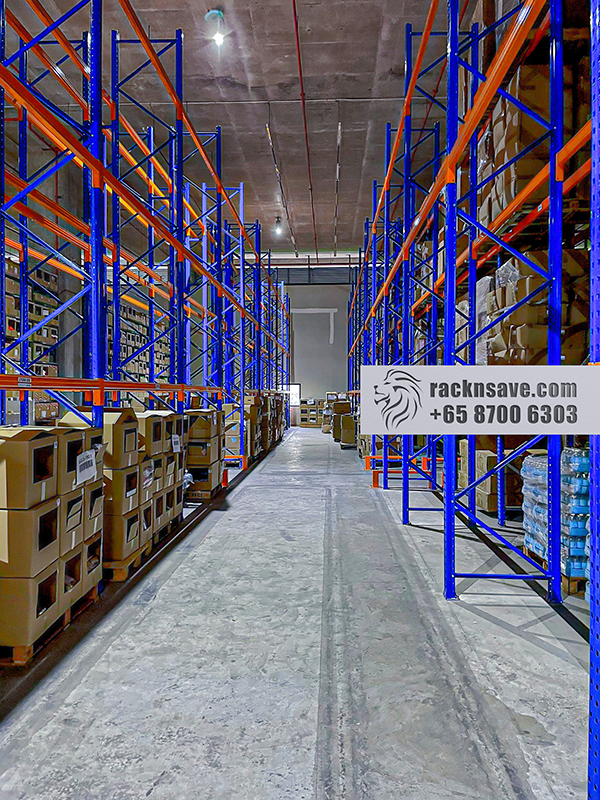

pallet rack systems warehouse industrial double deep Singapore racknsave image 2

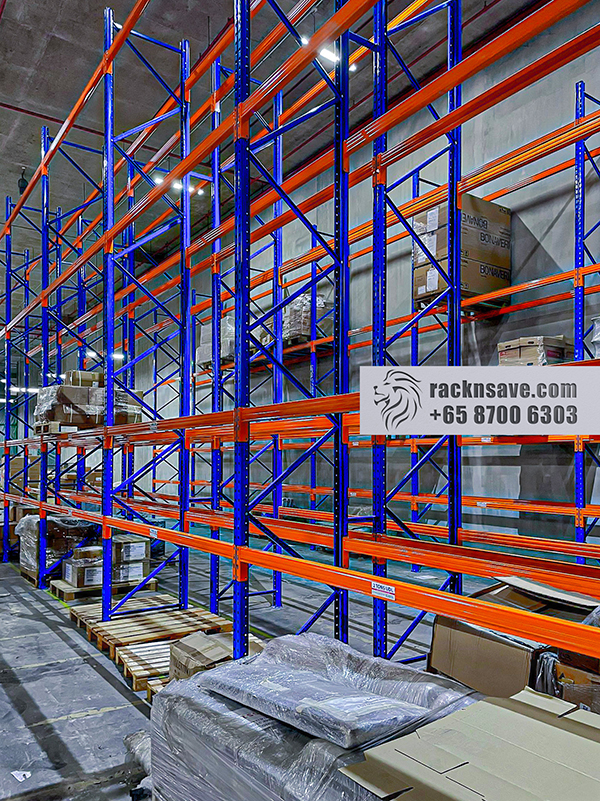

pallet rack systems warehouse industrial double deep Singapore racknsave image 3

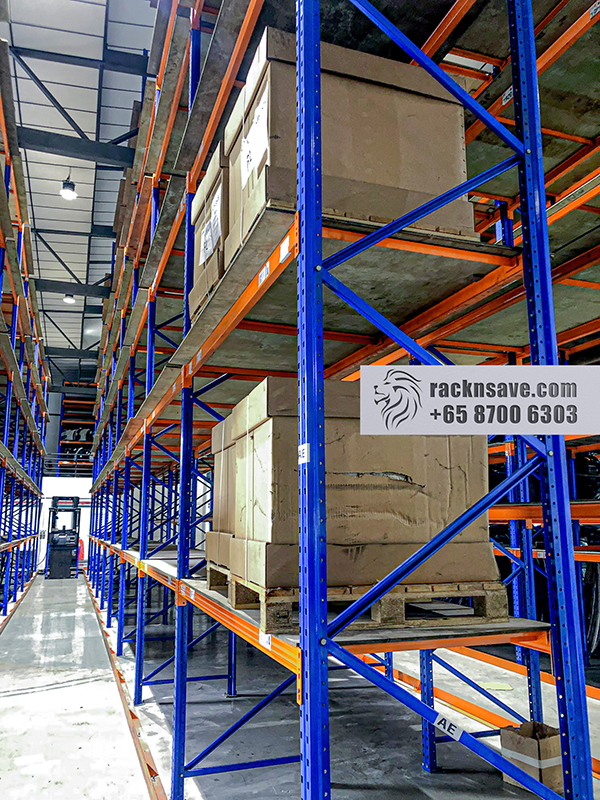

pallet rack systems warehouse industrial double deep Singapore racknsave image 4

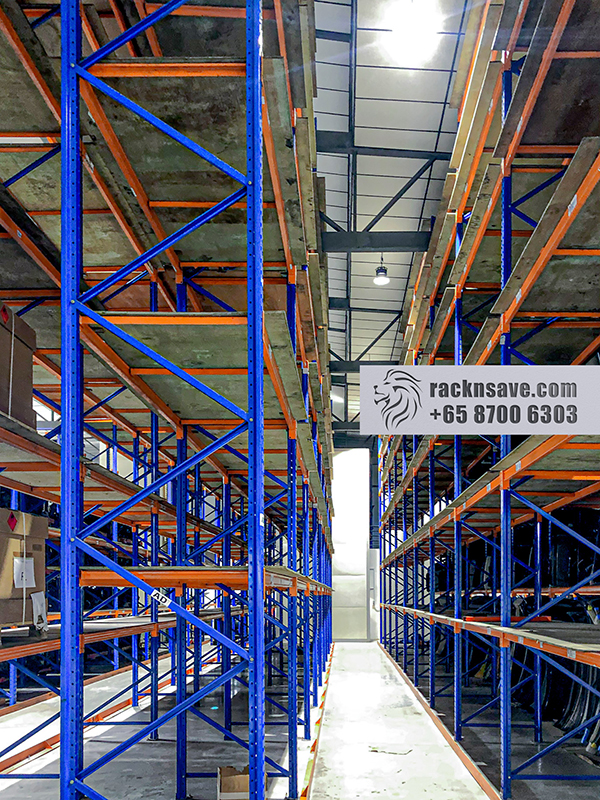

pallet rack systems warehouse industrial double deep Singapore racknsave image 5

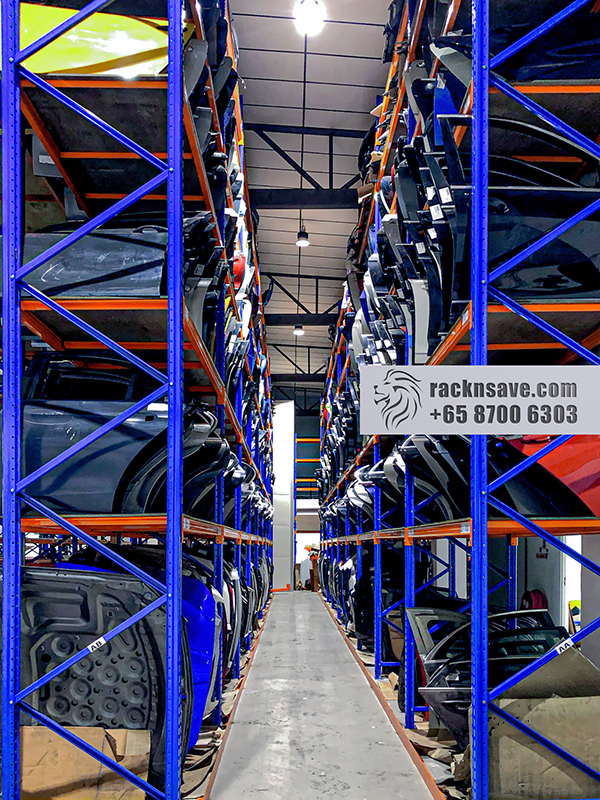

pallet rack systems warehouse industrial double deep Singapore racknsave image 6

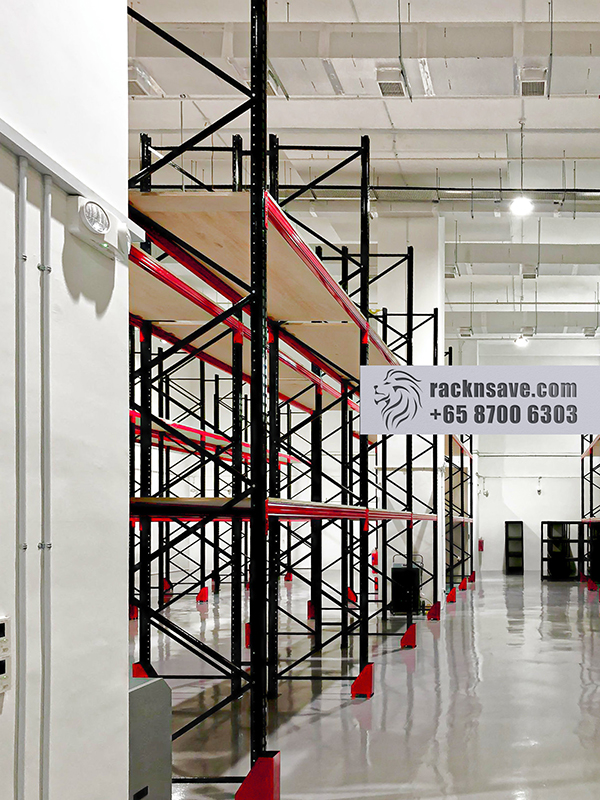

pallet rack systems warehouse industrial double deep Singapore racknsave image 7

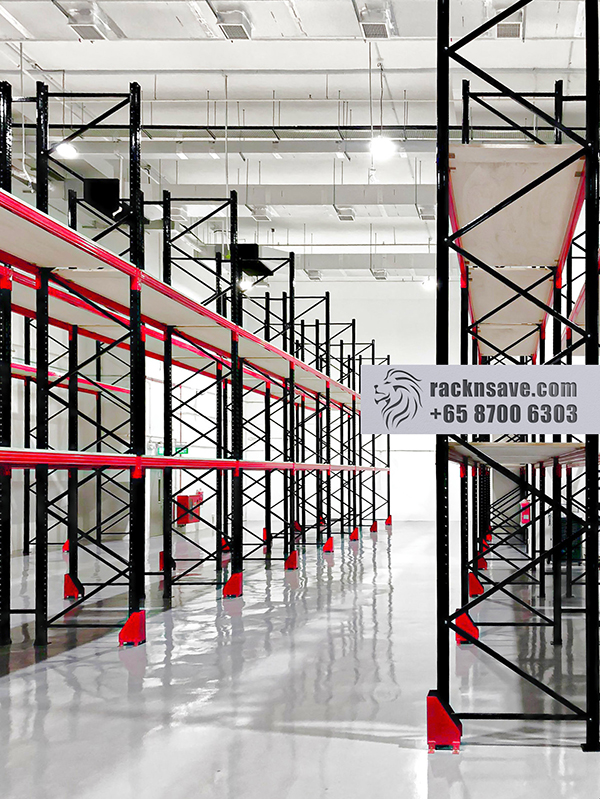

pallet rack systems warehouse industrial double deep Singapore racknsave image 8

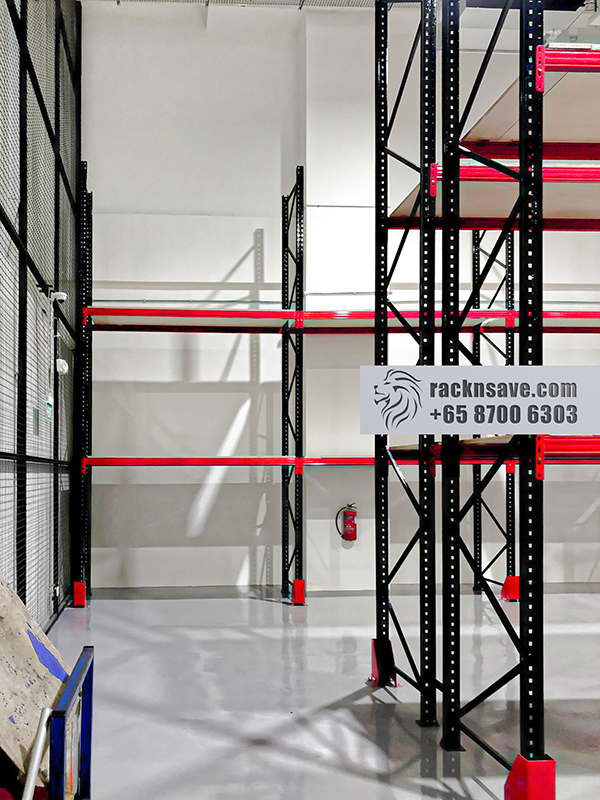

pallet rack systems warehouse industrial double deep Singapore racknsave image 9

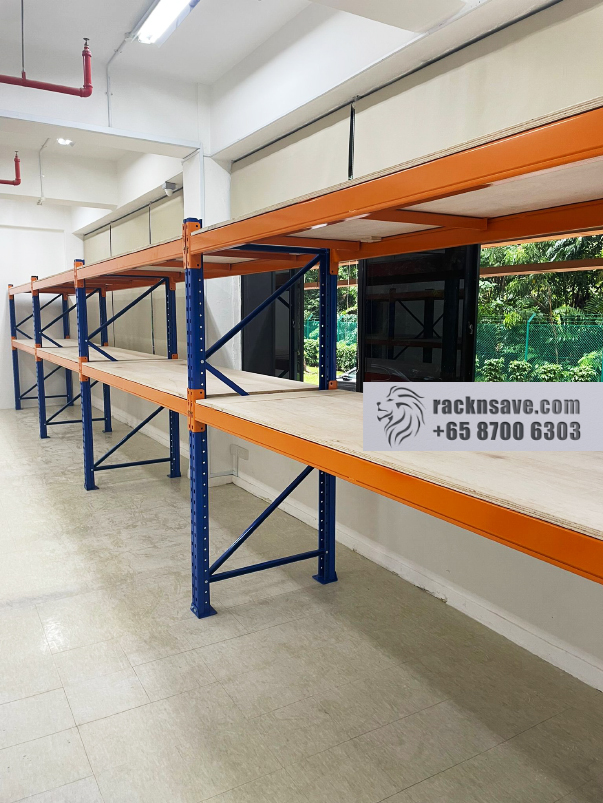

pallet rack systems warehouse industrial double deep Singapore racknsave image 10

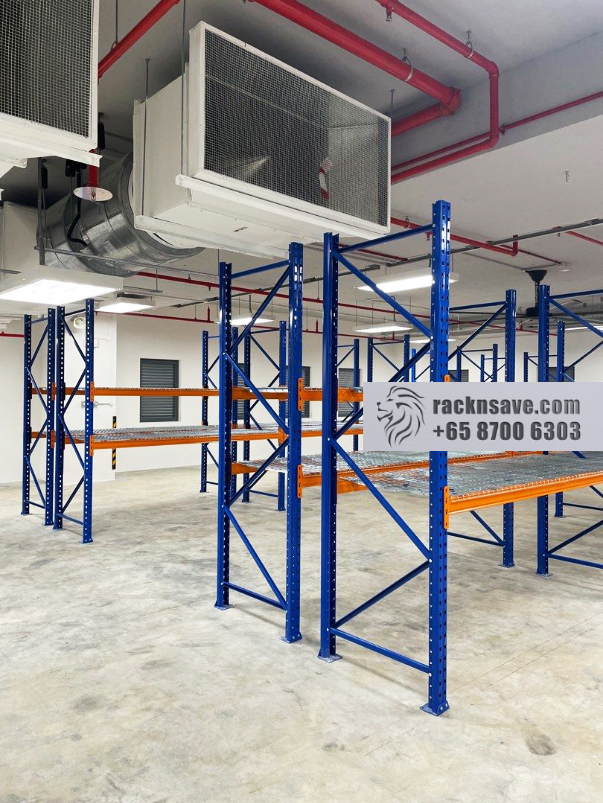

pallet rack systems warehouse industrial double deep Singapore racknsave image 11

pallet rack systems warehouse industrial double deep Singapore racknsave image 12

► Heavy Duty Pallet Racking System

Heavy duty pallet racking system is specially created for loads up to 3 tonnes. It is a material handling storage system designed to store materials on pallets. Although there are many varieties of pallet racking, all types allow for the storage of palletized materials in horizontal rows with multiple levels.

Double Deep Racking

Suitable for high-throughput stock (max. of four rows can be placed back to back)
Double Deep Racking is 2 pallet deep configuration pallet racking
Easily relocated and easily converted to and from single deep system
Easily adjusted or relocated at any time, or even added to
Increase up to 40% more storage capacity than selective pallet racking
Eliminate the need for renting or building new storage space by increasing cubic space
Increases floor space utilisation by up to 55%, eliminate unneeded aisles and release storage space
For companies that have limited variety of products in large quantity

Double Deep Racking

Very Narrow Aisle Racking

Ideal for lower-throughput items and bulk reserve storage
Suitable for high-bay applications
Minimises aisle width and increases net area utilisation
Save on potential building costs to create extra storage in small area
Provides options for automates storage and retrieval system (ASRS)
100% selective pallet rack
Design for flexibility, immediate access to every pallet load

Very Narrow Aisle Racking

Drive-in Racking

Rack uprights in a range of widths, depths, and thickness
Heavy-duty bracing
Increased storage space
Fewer aisles
Depth of system virtually unlimited
Maximise pallet storage
Cant-leg or set-back leg designs can help defend against forklift damage

Drive-in Racking
